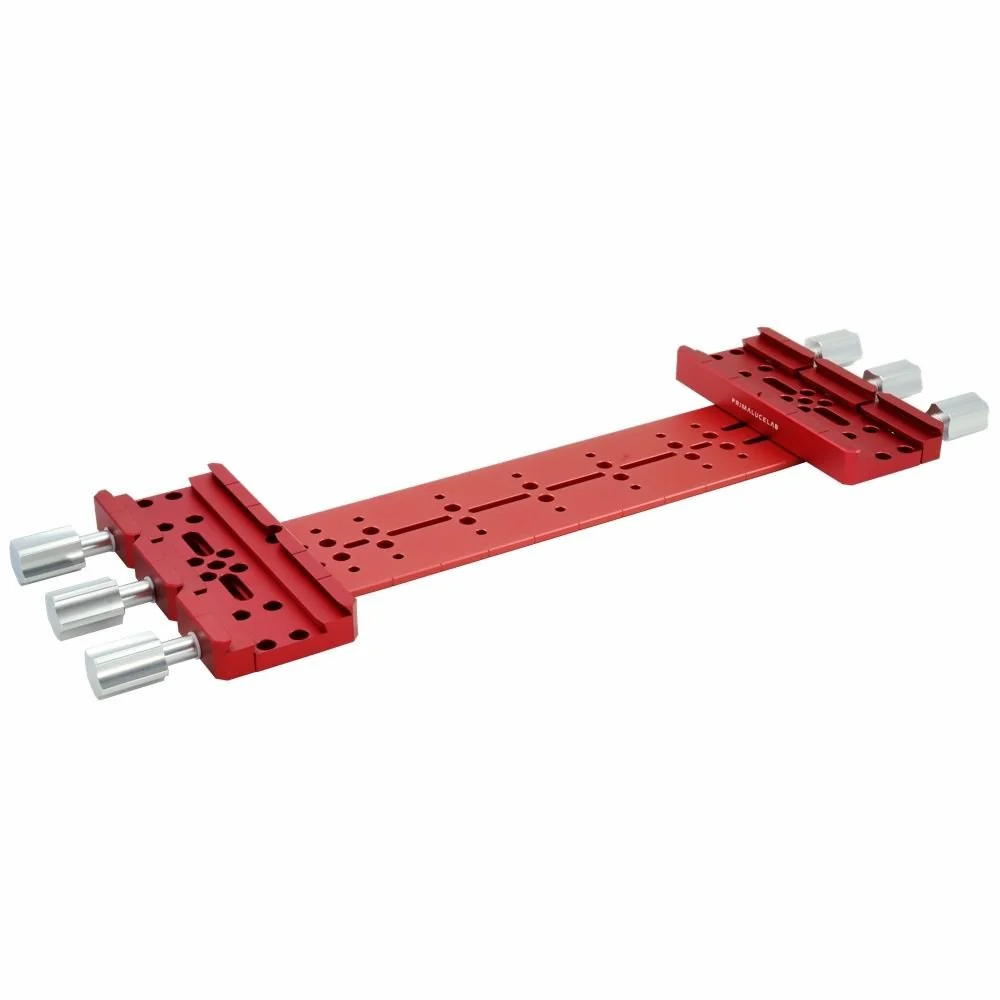

PrimaLuceLab Side by Side Losmandy D Style Dovetail Plate PLUS w/ Maxi Dovetail Clamps - 495mm

Thanks to its particular design, the PrimaLuceLab Side by Side Losmandy D Style Dovetail Plate PLUS w/ Maxi Dovetail Clamps - 495mm can be used:

• In photographic applications where it is necessary to install two telescopes on the same mount. For example, you can install a primary imaging telescope and one for guiding; or a camera (like a DSLR) that takes the pictures through its lens and a guide telescope.
• For visual applications where it is useful to install two telescopes parallel to one another.

This plate can be connected to all mounts with a Losmandy D Style plate and the two terminals (they offer the connection for Vixen and Losmandy plates) are spaced 455mm.

The PrimaLuceLab Side by Side Losmandy D Style Dovetail Plate PLUS w/ Maxi Dovetail Clamps - 495mm is part of PrimaLuceLab's system PLUS (Prima Luce Universal System) which includes a large variety of support rings, plates, guide rings and dovetail clamps to offer you the maximum freedom to build your mechanical system of support. All the PLUS elements have threaded holes, holes and slots suitable for connecting elements, always with maximum rigidity and comfort.

Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined. The aluminum is then sandblasted to achieve a very smooth surface finish and is anodized (hard anodizing) to increase the hardness of the material and protect it from oxidation.

If you have other mechanical accessories, you can still use all the elements of the PLUS system regardless of the brand. PrimaLuceLab has provided a series of central slots that allow you to screw on support ring plates or guide rings.

• This plate allows you to install a camera (like a DSLR) parallel to your main telescope
• Each component of the PLUS system is made of aluminum blocks that are high precision CNC machined
• This plate can be connected to all mounts with a Losmandy D Style plate. The two terminals are spaced 455mm
• The side-by-side plates allow you to install two telescopes parallel to one another on the same mount making this product useful for both photographic and visual applications

• 2x Maxi Vixen V-Style & Losmandy D Style Dovetail Clamp PLUS
• Losmandy D Style Dovetail Plate PLUS - 495mm
