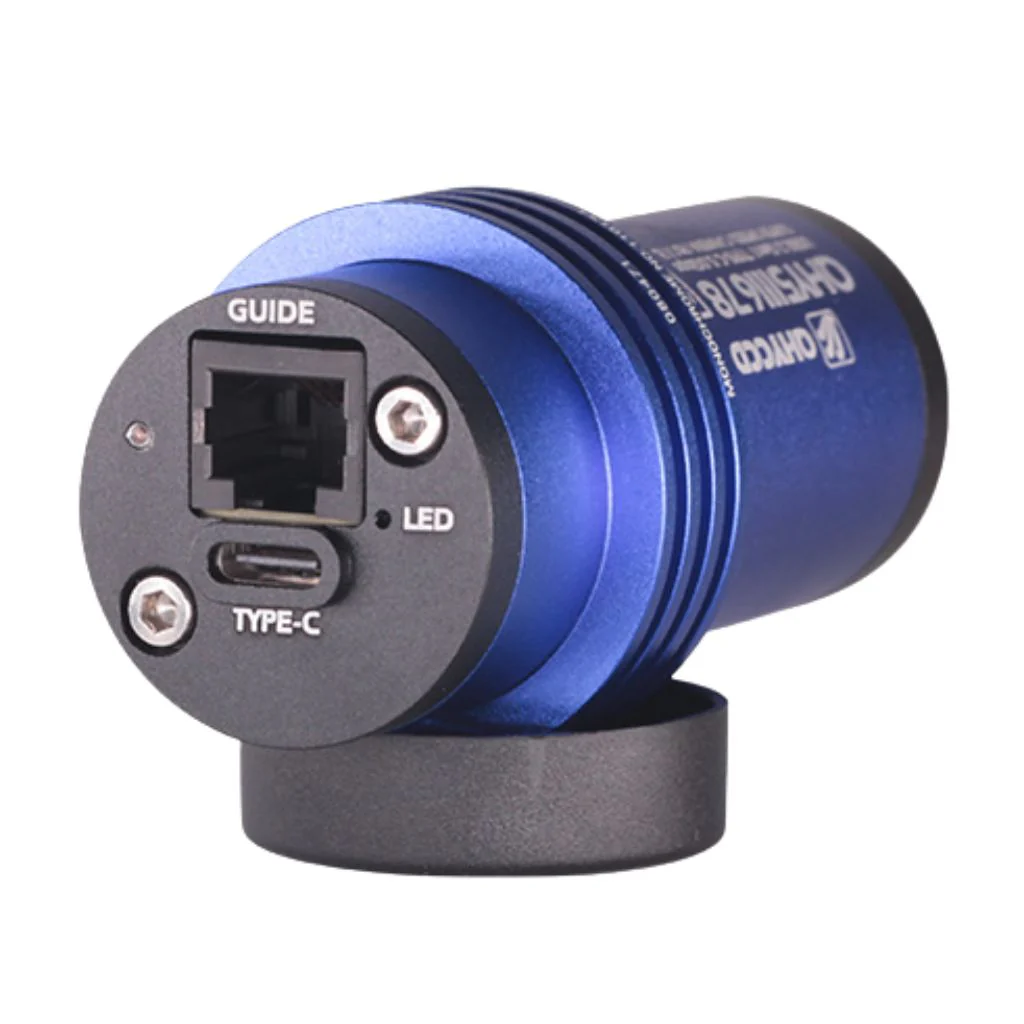

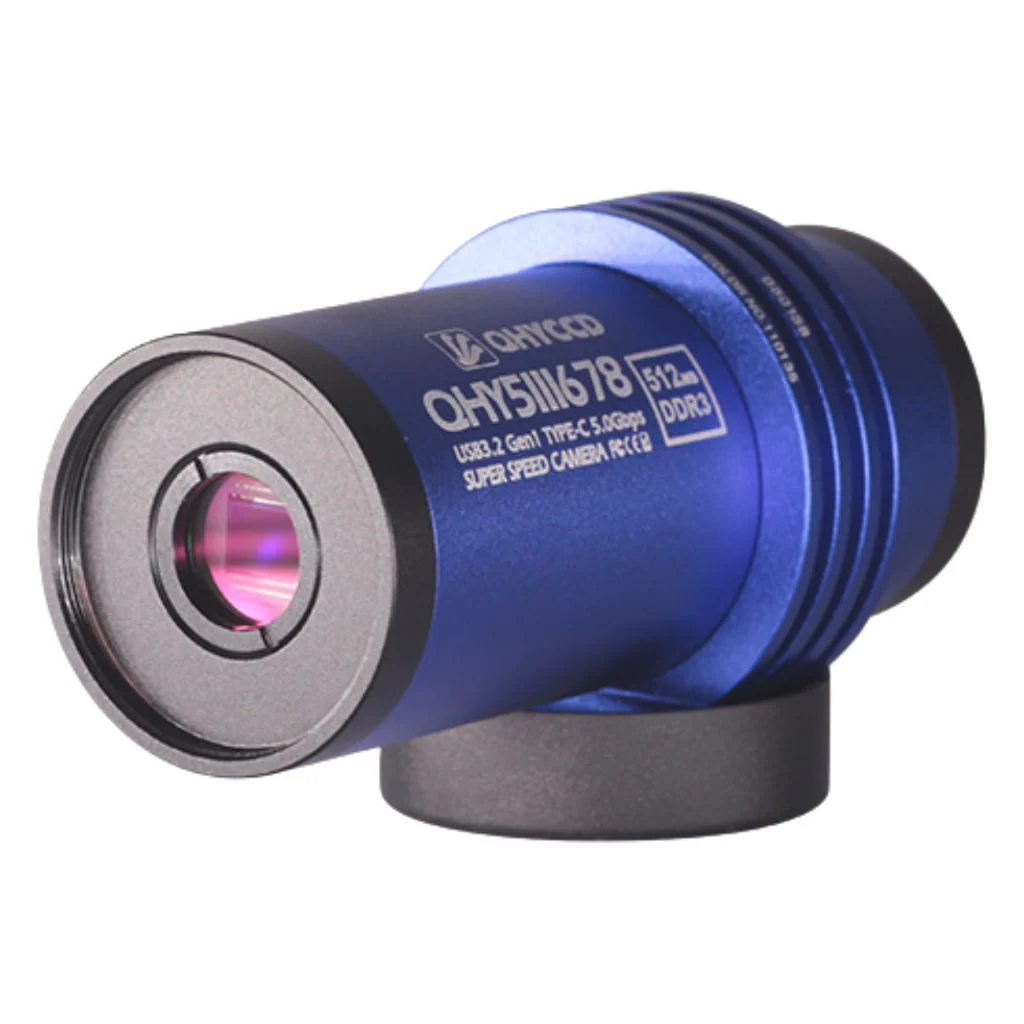

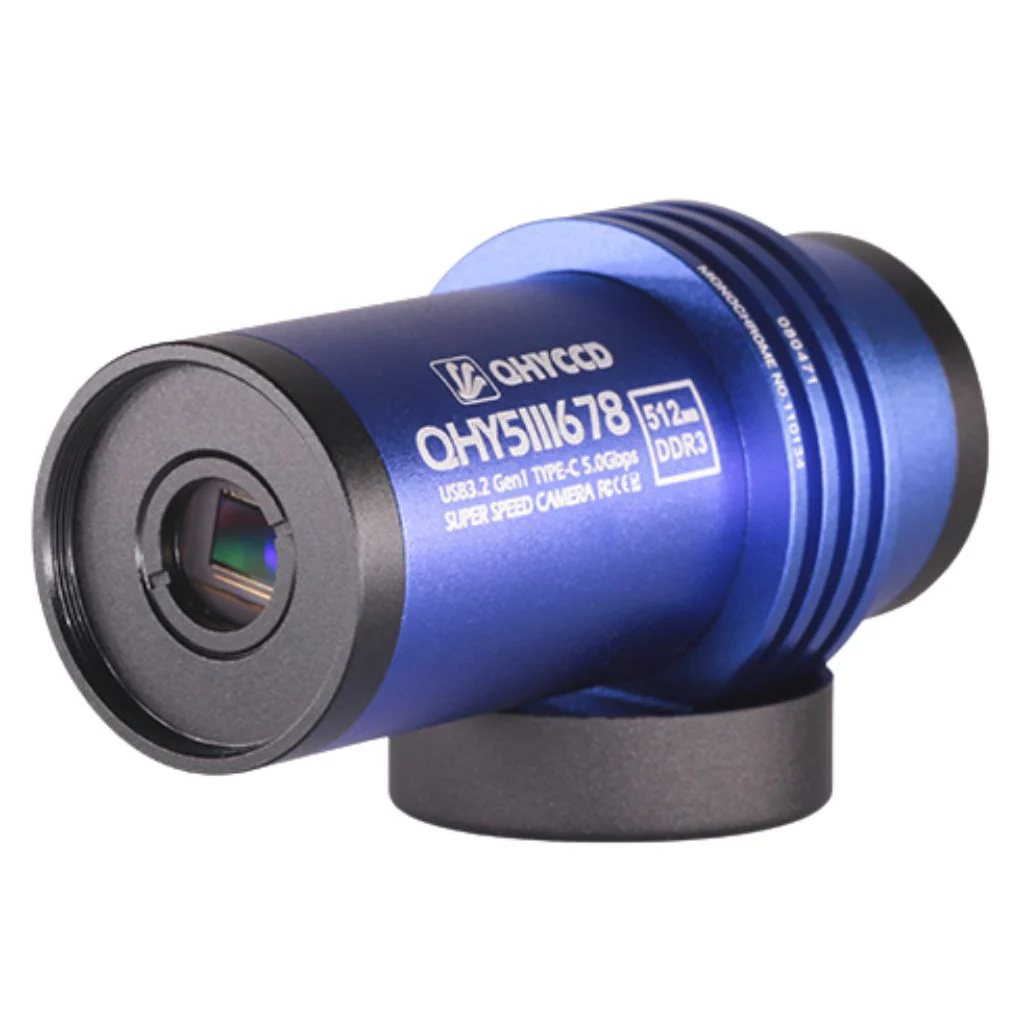

QHY 5III678 Color Planetary Camera & Guider

The QHY5III678C is the latest addition to the new Version 2 line of QHY5III Series planetary cameras and guiders. The QHY5III678C may be considered an enhanced version of its predecessor, the QHY5III178C. Like the IMX178, Sony’s new IMX678 is a back-illuminated 1/1.8-inch format sensor. However, the IMX678 has higher resolution and higher QE plus enhanced NIR sensitivity. In addition, the QHY5III678C cameras are built on the new v.2 platform with improved features.

Extended Near Infrared Sensitivity

In this latest generation of sensors, the photodiode portion of the IMX678’s pixel well is physically deeper than in previous sensors, allowing photons of longer wavelengths to penetrate deeper into the substrate. This dramatically increases the sensor’s sensitivity to red and near-infrared (NIR) light. The sensor displays almost equal peak sensitivity to NIR light as it does to light in the visible spectrum.

New QHY5III v.2 Models

As the third model in the latest generation of planetary cameras and guiders, the QHY5III678M includes all of the improvements and upgrades found in this latest series of cameras, including:

• Larger 512MB DDR3 image buffer
• Improved front end design
• CS and C-mount lens compatibility
• USB 3.2 Type C interface
• Universal ST-4 guiding port
• Status indicator LED
• 1.25" body size for maximum compatibility

• Larger 512MB DDR3 image buffer
• Improved front end design
• CS and C-mount lens compatibility
• USB 3.2 Type C interface
• Universal ST-4 guiding port
• Status indicator LED
• 1.25" body size for maximum compatibility
